The SLP74AHC123A is a dual retriggerable monostable multivibrator with reset. This edge-triggered multivibrator features output pulse-duration control by three methods. In the first method, the A input is low, and the B input goes high. In the second method, the B input is high, and the A input goes low. In the third method, the A input is low, the B input is high, and the reset (R(—D) input goes high. The basic pulse time is programmed by selection of an external resistor (R_EXT) and capacitor (C_EXT).

Once triggered, the basic output pulse width may be extended by retriggering the gated low-level-active (nA(—() or high-level-active (nB). By repeating this process, the output pulse period (nQ = HIGH, nQ—= LOW) can be made as long as desired. Pulse duration can be reduced by taking nR—D low, which also inhibits the triggering.

An internal connection from nR(—D to the input gate makes it possible to trigger the circuit by a positive-going signal at input nR(—D illustrate pulse control by retriggering and early reset. The basic output pulse width is essentially determined by the value of the external timing components R_EXT and C_EXT. When C_EXT 10nF, the typical output pulse width is defined as: t_W = R_EXTC_EXT, where t_W = pulse width in ns; R_EXT= External resistor in k; C_EXT = External capacitor in pF.

Main feature

Schmitt-trigger on all inputs
Inputs accept voltages higher than V_CC
Edge triggered from active-high or active-low gated logic inputs
Retriggerable for very long pulses
Direct reset terminates output pulse
ESD protection:

HBM Exceeds 2000V
CDM Exceeds1000V

Latch-up performance exceeds 100 mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74AHC123AEC	SOP-16-225-1.27	AHC123A	Halogen free	Tube
SLP74AHC123AECTR	SOP-16-225-1.27	AHC123A	Halogen free	Tape&Reel

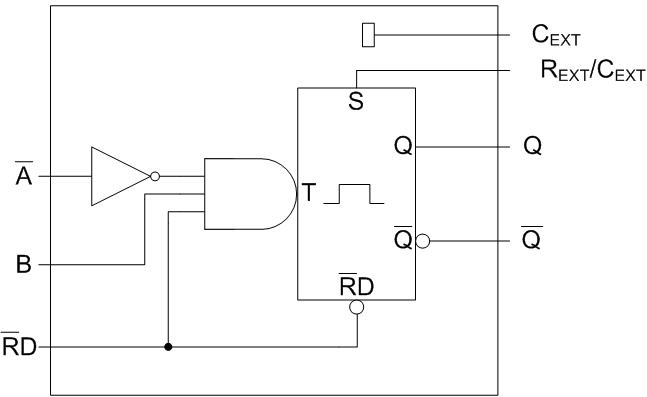

Block Diagram

Fig.1 Block diagram

Packages

SOP-16-225-1.27
